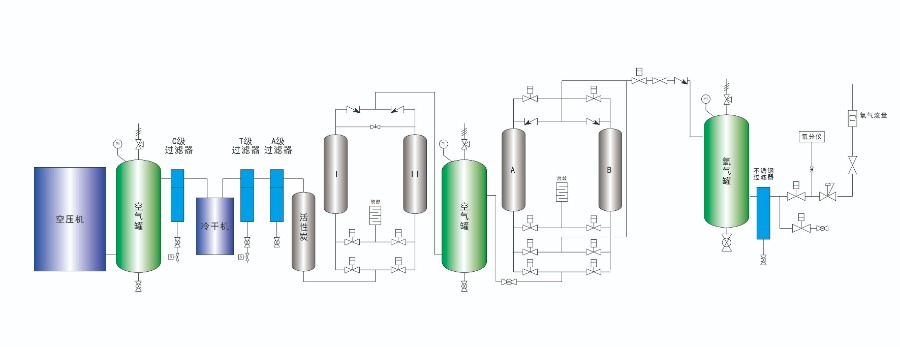

Jiangsu Luoming complete oxygen production system includes air compressor, air dryer, air filter, oxygen generator, oxygen booster, oxygen storage tank and so on. In addition, in order to meet the actual situation of different industries and different sites, Jiangsu Luoming can also configure bacteria removal filter, custom trailer type, container type (with fan/air conditioning, with generator, with insulation, with lighting), intelligent control system for customers.
1. Air compressor:
It can input raw material air for the complete system.
The exhaust pressure is recommended at 0.5-0.8MPa, which should not be too high or too low.
The oil content of the compressed air excluded should not exceed 10ppm.
2. Compressed air treatment system
The compressed air is removed from water, oil, dust and other processes to prevent impurities from entering the oxygen main engine part, affecting the service life of the molecular sieve.
(If properly maintained, the service life of the molecular sieve is 8-10 years. However, if impurities enter, they will be seriously affected)
Remove water can be equipped with Refrigerated Air Dryer
If the site humidity is high, or the industry requirements can be configured adsorption dryer.
For the removal of impurities, different types of multistage filters with different filtration accuracy can be selected for processing. (Jiangsu Luoming for customers to configure C/T/A three-stage filter, can ensure that the oil content is less than 0.001ppm)
3. Oxygen generator (oxygen main engine part)
Through pressure swing adsorption technology, the air raw materials and finished oxygen are filtered and purified layer by layer in the process of oxygen production to ensure that the finished oxygen produced meets the technical requirements. The equipment is automatically controlled by PLC system, and no special person is required to be on duty.
4. Oxygen Booster
If the customer needs the finished oxygen outlet pressure is high, the booster should be configured to pressurize the oxygen. (Generally need to fill the bottle or transport a long distance and special industries.)
5. Oxygen storage tank
It can be used to store oxygen to ensure continuous and stable oxygen output in the complete oxygen production system.
6. Remote control system(Can be Selected)
It can remotely monitor the operation of the oxygen production system, and remotely debug, start and stop and upgrade the oxygen production system.
