The medical molecular sieve oxygen generator utilizes zeolite molecular sieve as the adsorbent and employs the Pressure Swing Adsorption (PSA) process to produce medical oxygen (also referred to as an oxygen generator).

The medical onsite oxygen filling system is an ideal solution for regions or countries where purchasing medical oxygen cylinders locally is costly and logistically challenging. With this system, customers can purchase a medical oxygen generator to supply on-site oxygen, using part of the oxygen for their own needs. The excess oxygen produced can be stored in cylinders, which can then be sold to other locations, offering a cost-effective way to meet the local demand for medical oxygen and create an additional revenue stream.

The plateau oxygen supply system is developed by LuoMing technical team based on the particularity of the plateau environment and rooted in the plateau for many years.

Luoming pressure swing adsorption oxygen generator technology is far superior to peers, purity can reach 99.5%, meet the ‘GB8982-2009 medical and aviation respiratory oxygen standard’, stable performance, single equipment can not only solve the oxygen needs of the common ward, but also meet the emergency center lCU, anesthesia room, operating room and other high purity oxygen needs.

Plateau environment, easy to cause human brain hypoxia, dizziness, chest tightness, fatigue lethargy, slow reaction, lack of concentration and other symptoms,if serious will affect the normal study, work and life.

Insufficient oxygen supply to the human body is prone to dizziness and chest tightness symptoms. Oxygen inhalation increases arterial blood oxygen concentration and relieves hypoxia symptoms. The tank volume of the portable oxygen respirator is 1000ml,which is light and portable, and the oxygen concentration can reach more than 90%. The tank body is pressure-resistant and sealed. Leakage, medical polyethylene mask, the side with a larger arc is upward, it is very convenient to cover the mouth and nose with the mask to inhale oxygen.

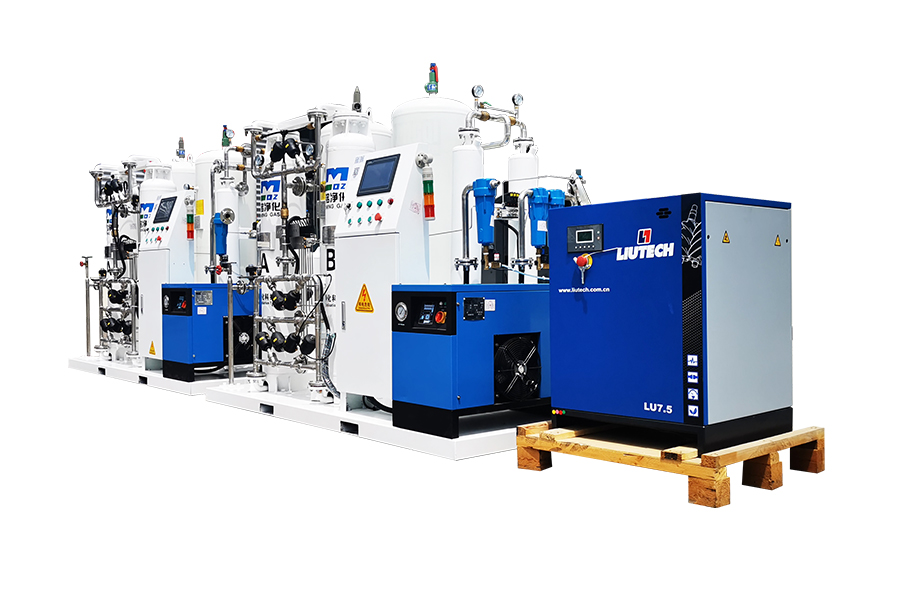

Jiangsu Luoming PSA oxygen generator utilizes advanced Pressure Swing Adsorption (PSA) technology. The PSA oxygen production plant uses clean, compressed air as the raw material and high-quality zeolite molecular sieve as the adsorbent. Under controlled pressure conditions, the system separates oxygen from purified, dry compressed air through a process of pressure adsorption and decompression desorption in the adsorbent. This process ensures the production of high-purity medical oxygen efficiently and reliably.Because of the aerodynamic effect, the diffusion rate of nitrogen in the pores of zeolite molecular sieve is much higher than that of oxygen. Nitrogen is preferentially adsorbed by zeolite molecular sieve, and oxygen is enriched in the gas phase to form finished oxygen. and then by decompression to atmospheric pressure, adsorbent adsorbed nitrogen and other impurities, to achieve regeneration. Generally, two adsorption towers are set up in the system, one tower absorbs oxygen, the other tower desorption regeneration, through PLC program controller to control the opening and closing of the pneumatic valve, so that the two towers alternate circulation, so as to obtain high purity oxygen (93% ±2% or 99.5%).

Jiangsu Luoming's oxygen filling system is designed for regions or countries where purchasing oxygen cylinders locally is difficult and expensive. Customers can purchase an oxygen generator to supply part of the oxygen for their own on-site use. The excess oxygen can be stored in oxygen cylinders and sold to other locations, providing a cost-effective and efficient on-site oxygen supply solution.

Compared with the ordinary pressure swing adsorption oxygen generator, the biggest advantage of Jiangsu Luoming portable trailer type/container type oxygen generator is easy to move; Compact design; No need to build machine room, no installation, no debugging, plug and use, quickly put into use, very suitable for emergency oxygen needs.

The oxygen production technology of "Jiangsu Luoming" high purity oxygen generator is far superior to that of peers, and the purity can reach 99.5%. Simple operation, fast oxygen production, automatic control of the whole process. The oxygen purity can reach 93% +- 2% within 30 minutes, the oxygen purity can reach 99% within 40 minutes, and the oxygen purity can reach 99.5% within 45 minutes, meeting the requirements of rapid gas use.

The plateau environment is a challenge to human survival and has a negative impact on the healthy life of personnel. The company is committed to improving the health of people in the plateau area, simulating the low-altitude environment, and improving the oxygen concentration in the air in the region. After oxygen-rich ventilation, the simulated indoor altitude is below 2400m (including), and the indoor air oxygen concentration is increased by about 4 ~ 6%. Under this simulated altitude, most of the altitude sickness can be eliminated,to ensure the health of personnel and improve work efficiency, so the implementation of oxygen supply engineering is very necessary.

This method is based on the principle of 2O₂+H₂→2HO₂, using a catalyst reagent to react at a certain temperature to generate  HO₂, remove oxygen, and generate 299.99%high-purity nitrogen. This process consists of two or more reactors working alternately to continuously produce gas. It is suitable for sites with gas volume ≤500Nm3/h and no high requirements for H₂.
